Fire Partition
Two-tier fire-resistant partition system: Class A all-steel (1-hour fire integrity + insulation) and Class C aluminum modular for cost-effective fire compartmentalization.
About Fire Partition
The Fire Partition is MS Office Systems’ fire-resistant glass partition system, available in two configurations to meet different code requirements and project budgets. Both options include independent fire test certification and integrate with our standard Great Wall and Everest framing for visual continuity across rated and non-rated zones.
Two Fire-Rated Configurations

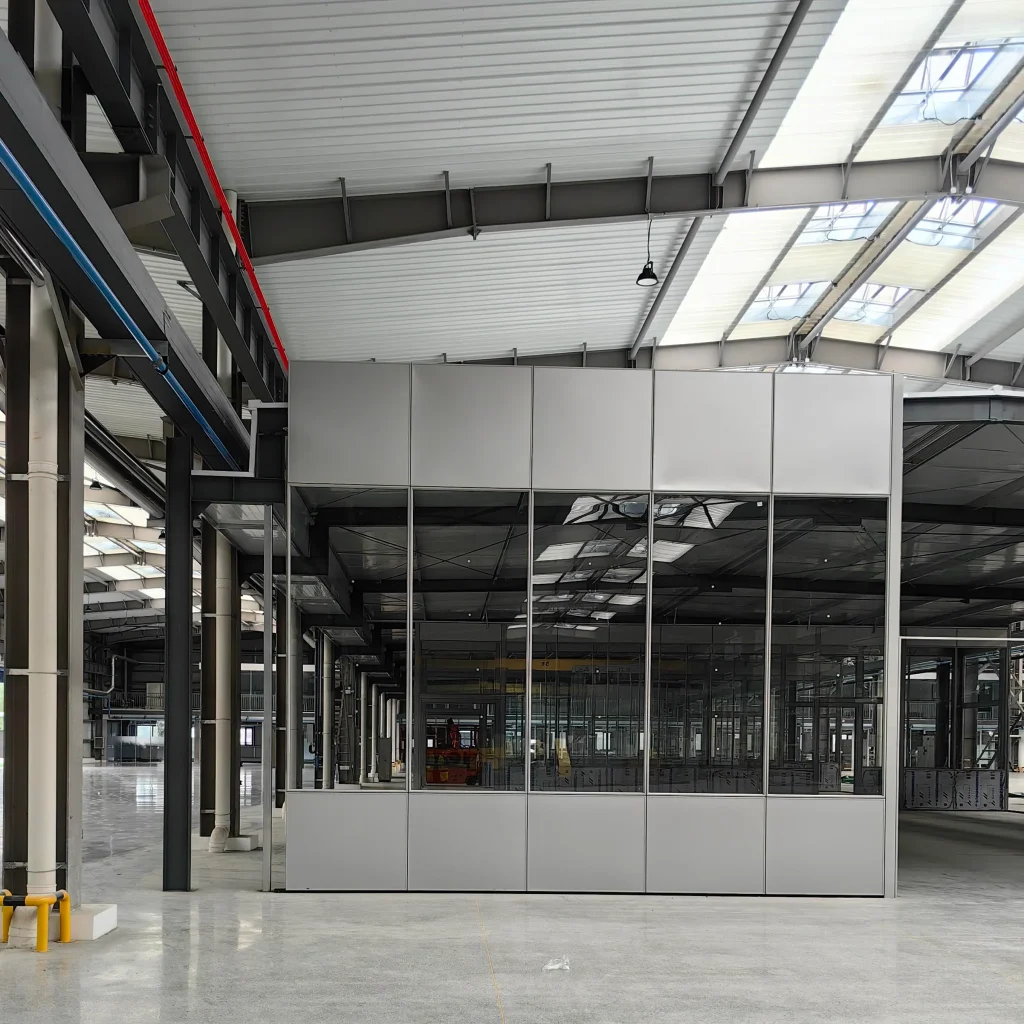

Class A — All-Steel Fire Partition
Premium fire-resistant configuration combining specially treated insulating fireproof glass with an all-steel frame system. The structural integrity remains stable even at elevated temperatures, providing standalone fire protection without requiring sprinkler complement.
- 1-hour fire integrity + 1-hour fire insulation
- Smoke insulation + heat radiation shielding
- Sound insulation + impact resistance
- All-steel frame for elevated-temperature stability
- Standalone — no sprinkler complement required
Best for： evacuation routes, building cores, high-rise tower compartmentalization, industrial facilities

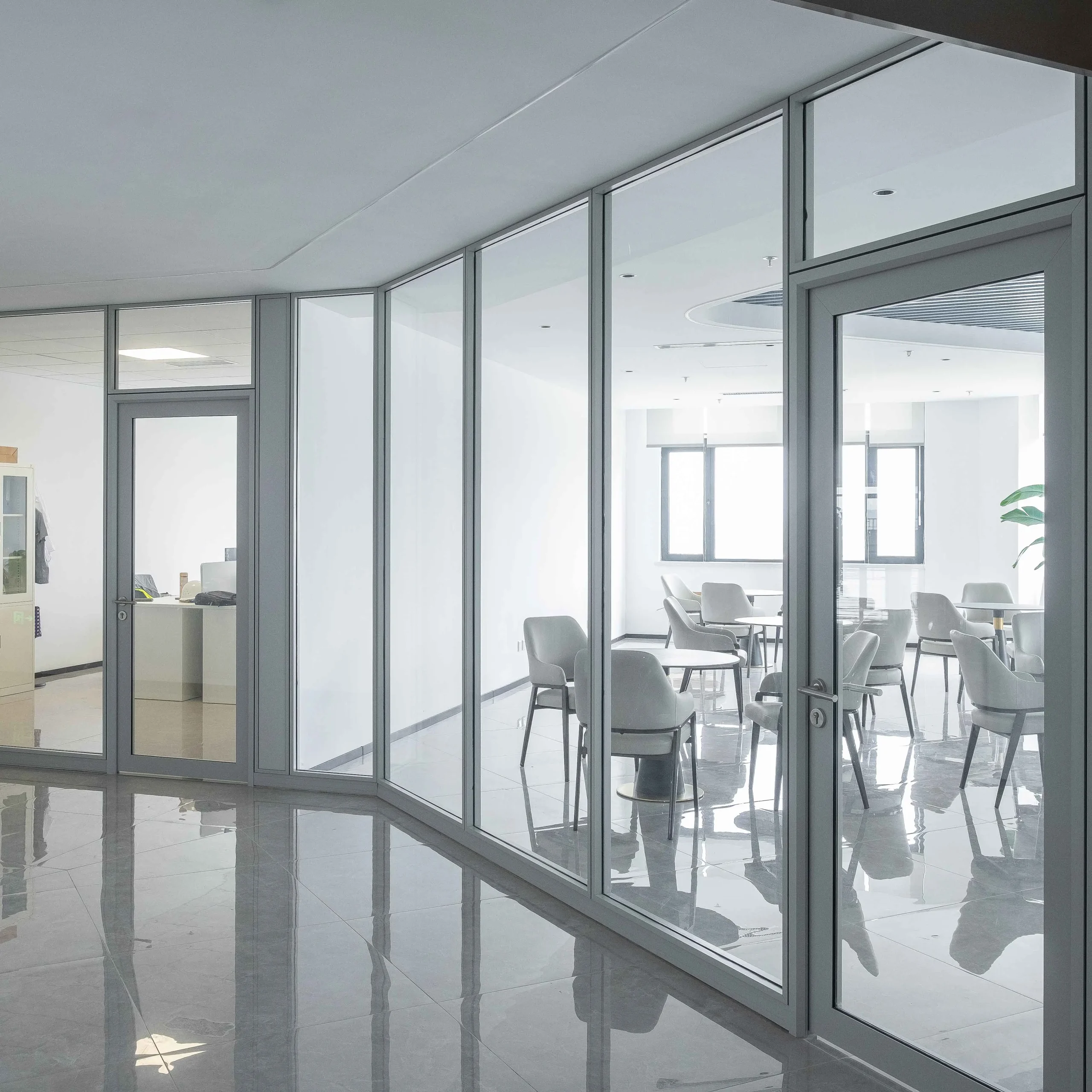

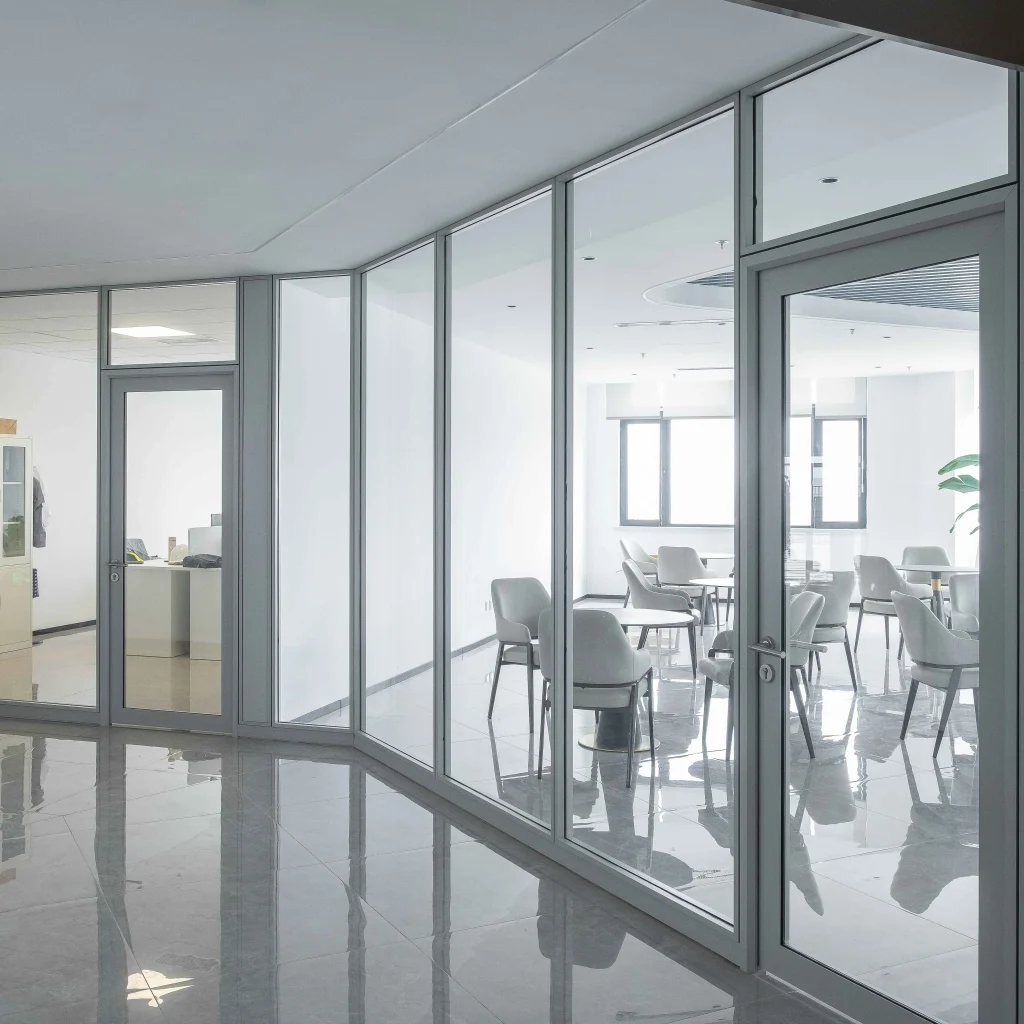

Class C — Modular Aluminum Fire Partition
Cost-effective fire-resistant configuration using specially treated fire-resistant glass with our standard 74mm aluminum modular framing. Aesthetic continuity with Great Wall and Everest series enables fire-rated zones to visually match adjacent standard partitions across the office floor.
- 1-hour fire integrity (custom)
- Standard 74mm aluminum modular profile
- Specially treated fire-resistant glass (single or laminated)
- Used with fire water/sprinkler complement
- Aesthetic matches Great Wall + Everest standard partitions
Best for： office floor compartmentalization, retail mall storefronts, hotel corridors, mid-rise commercial buildings
Specifications Comparison
| Specification | Class A All-Steel | Class C Modular Aluminum |
| Frame | All-steel construction | Standard 74mm aluminum modular |
| Glass | Insulating fireproof glass (multi-layer) | Specially treated fire-resistant |
| Fire Integrity | 1 hour | 1 hour |
| Fire Insulation | Yes (thermal barrier) | No |
| Smoke Rating | Yes | No |
| Used With | Standalone | Fire water/sprinkler complement |
| Aesthetic Match | Distinct steel appearance | Matches Great Wall + Everest |
| Best For | Evacuation routes, cores, high-rise | Office, retail, hotel |
Project Examples
Best Applications
Class A applications: evacuation corridors, building core enclosures, vertical service shafts, high-rise tower compartmentalization, hospital fire zones, cinema/theater enclosures, data center perimeters, industrial and manufacturing facilities.
Class C applications: office floor compartmentalization in mid-rise buildings, retail mall storefront fire separation, hotel corridor fire zones, mixed-use development tenant separation.
Why MS for Fire Partition
- Aesthetic continuity — Class C uses standard modular framing, fire zones visually match adjacent partitions
- Single-supplier integration — design, manufacture, and install both rated and non-rated zones from one vendor
- Code compliance — products tested against Chinese GB and international standards
- 19+ years experience with hospitals, hotels, high-rise offices, industrial facilities
- Independent fire test certificates available for engineer review
Get Started
Send required fire rating (Class A or Class C), partition runs, and any specific code references your project must satisfy (NFPA, BS, GB, GCC). We provide technical submittals and certified fire test reports for engineer review.
Related Products

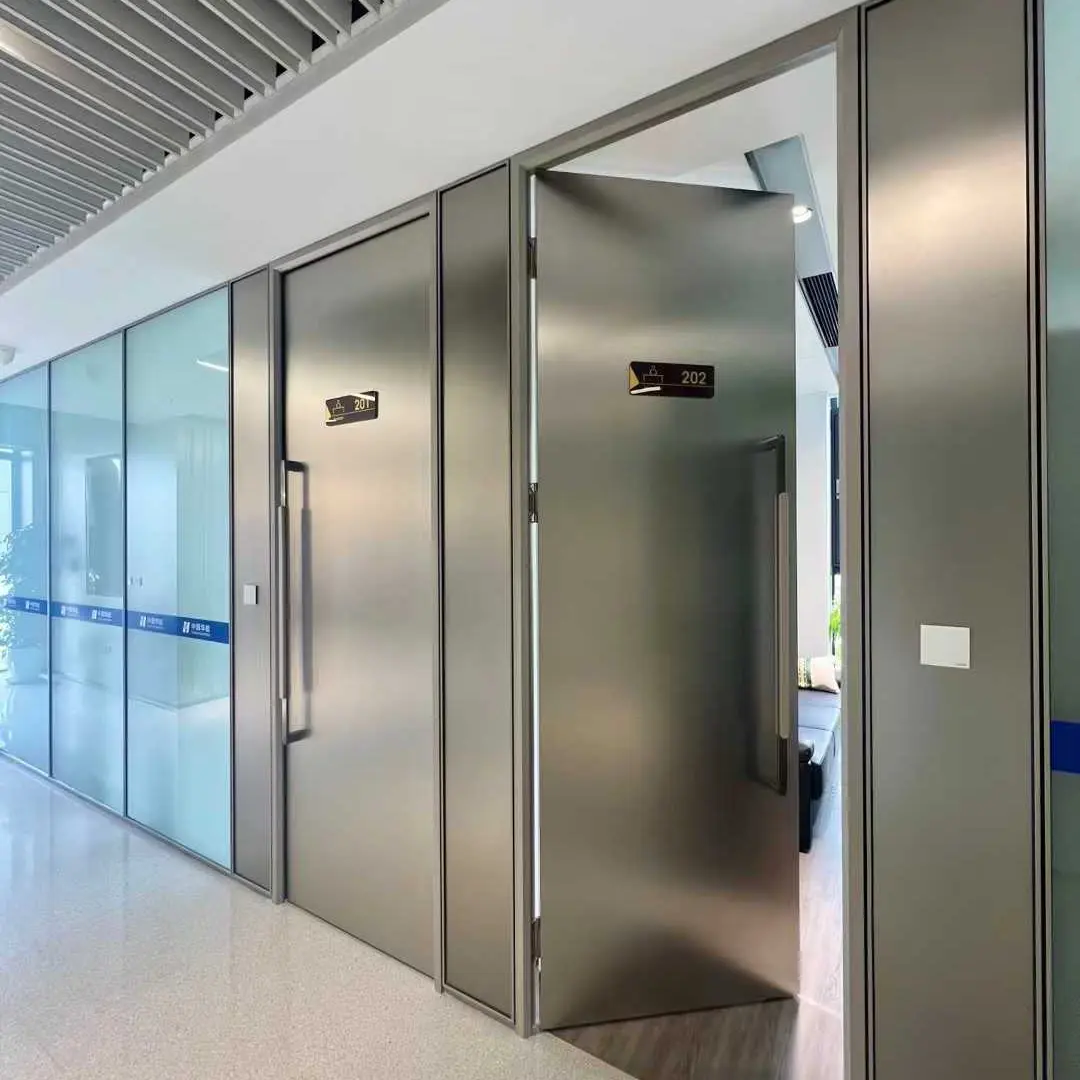

Steel Security Door
